C++ zyBooks Chapter 12 - Binary Trees & BSTs

ECE 2620, Fall 2019


Table of Contents


1. Binary Tree Basics

In a list, each node has up to one successor.

In a binary tree, each node has up to two children, known as a left child and a right child.

"Binary" means two, referring to the two children.


2. Binary Tree Definitions

  • Leaf: A tree node with no children.

  • Internal node: A node with at least one child.

  • Parent: A node with a child is said to be that child's parent.

  • A node's ancestors include the node's parent, the parent's parent, etc., up to the tree's root.

  • Root: The one tree node with no parent (the "top" node).

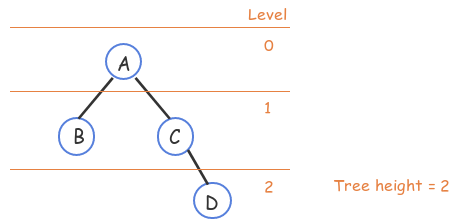

3. Depth, level, and height

  • The link from a node to a child is called an edge.

  • A node's depth is the number of edges on the path from the root to the node.
    The root node thus has depth 0.

  • All nodes with the same depth form a tree level.

  • A tree's height is the largest depth of any node. A tree with just one node has height 0.

  • A tree is balanced if for any node, the heights of the node's left and right subtrees differ by only 0 or 1.

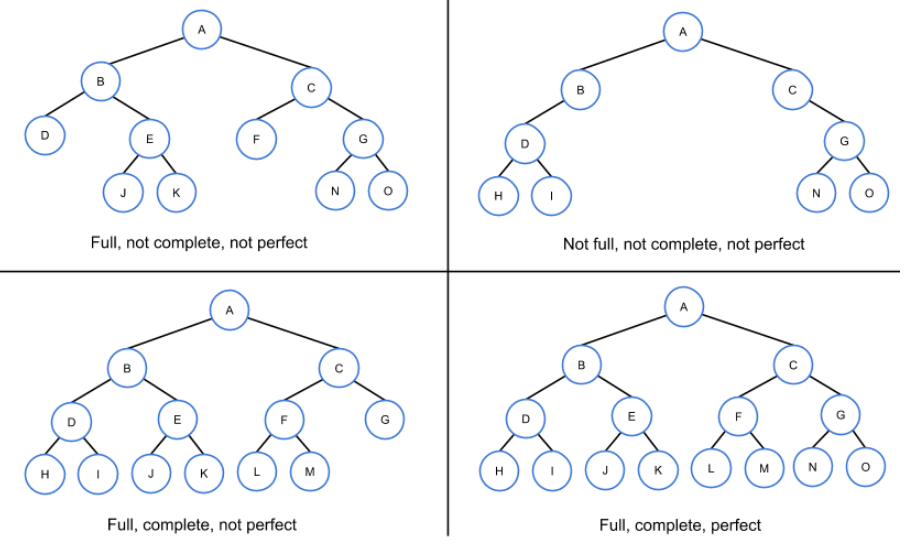

4. Special Types of Binary Trees

  • A binary tree is full if every node contains 0 or 2 children.

  • A binary tree is complete if all levels, except possibly the last level, are completely full and all nodes in the last level are as far left as possible.

  • A binary tree is perfect, if all internal nodes have 2 children and all leaf nodes are at the same level.

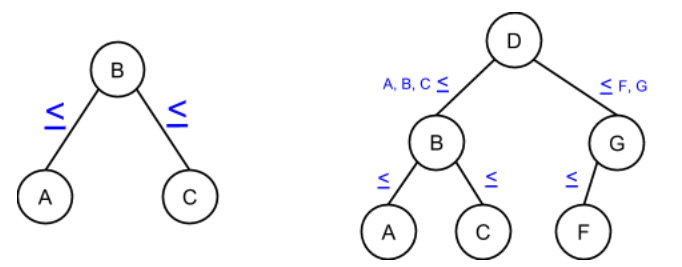

5. Binary Search Trees

An especially useful form of binary tree is a binary search tree (BST), which has an ordering property that any node's left subtree keys ≤ the node's key, and the right subtree's keys ≥ the node's key, which enables fast searching for an item.

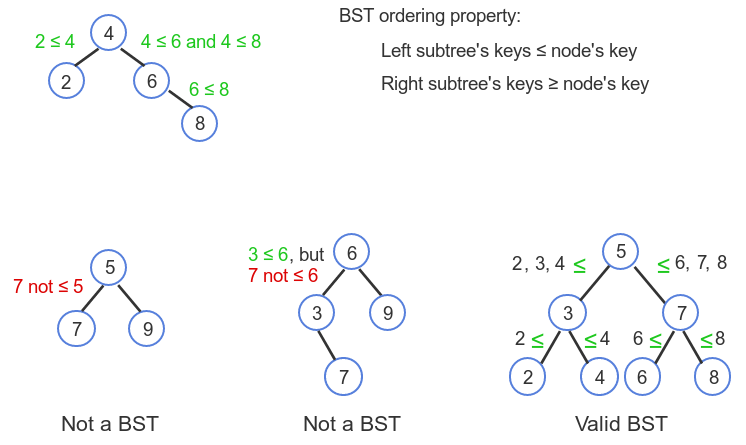

6. BST Examples

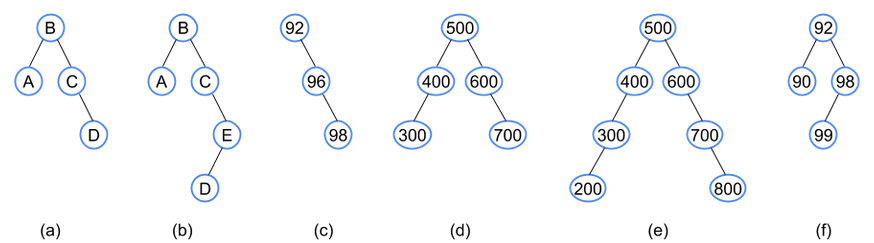

7. Balanced Trees

A tree is balanced if for any node, the heights of the node's left and right subtrees differ by only 0 or 1.


8. BST Height

A tree's height h is the maximum number of edges from the root to any leaf.

BST search time is O(h).

The minimum N-node binary tree height is h = ⌊log2(N)⌋

achieved when each level is full except possibly the last.

The maximum N-node binary tree height is N-1 (the -1 is because the root is at height 0).

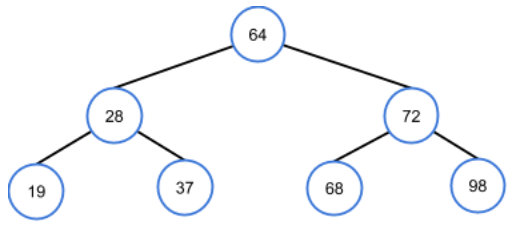

Perfect BST with minimum possible height for 7 nodes

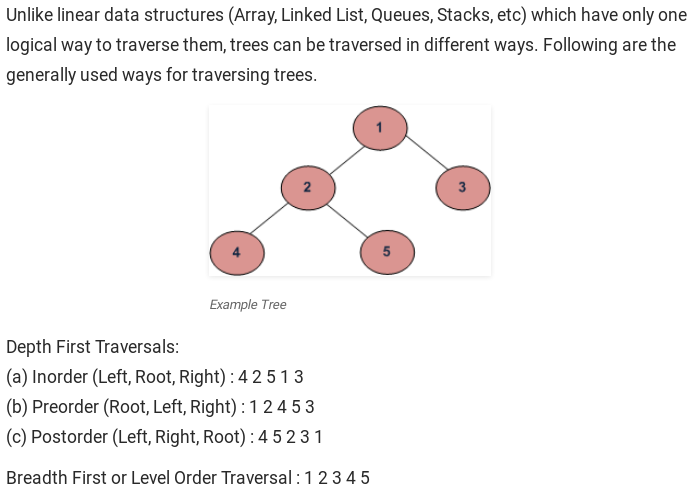

9. Tree Traversal - Inorder, Preorder, Postorder

Mirror image traversals: reverse Left/Right order

geeksforgeeks.org


10. Tree Framework

Tree/ or Tree.cc:
class Tree
{
 private: Node *root;

 public: Tree() { root = nullptr; }

  void insert( long d);

  void print() const;

};

11. Tree Node

Tree/ or Tree.cc:
class Node
{
  friend class Tree; // so Tree can access the private data

  private: long data; Node *left, *right;

  public: // need constructor

};

12. Tree Implementation

Tree/ or Tree.cc:
void Tree::insert( long d)
{

}

void Tree::print() const
{

}
See notes from class...
